首頁進口晶振E1SB48E00001ME|Hosonic Crystal

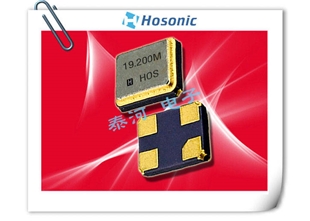

E1SB48E00001ME|Hosonic Crystal

產品型號：39220553
晶振頻率：48MHz
晶振尺寸：2.0*1.6*0.5mm
產品應用： Hosonic晶振,臺灣進口晶振,E1SB無源晶振,E1SB48E00001ME晶振,石英晶體諧振器,四腳貼片晶振,SMD晶體,3225封裝晶振,頻率48MHz,負載7pF,頻率穩定性10ppm,工作溫度-40~85°C,耐高溫晶振,高品質晶振,無鉛環保晶振,小型化無...

E1SB48E00001ME|Hosonic Crystal,Hosonic晶振,臺灣進口晶振,E1SB無源晶振,E1SB48E00001ME晶振,石英晶體諧振器,四腳貼片晶振,SMD晶體,3225封裝晶振,頻率48MHz,負載7pF,頻率穩定性10ppm,工作溫度-40~85°C,耐高溫晶振,高品質晶振,無鉛環保晶振,小型化無線模塊設備晶振,無線射頻識別晶振,消費電子產品晶振,視頻設備晶振.

E1SB48E00001ME|Hosonic Crystal特點：
-非常緊湊和薄(2.0*1.6*0.5mm max.)

-頻率范圍為16 ~ 62.5M，帶Fund

-適用于設計空間有限的智能手機應用、小型化無線模塊設備、RFID應用和其他消費類產品

-無鉛。滿足使用無鉛焊料的回流剖面要求

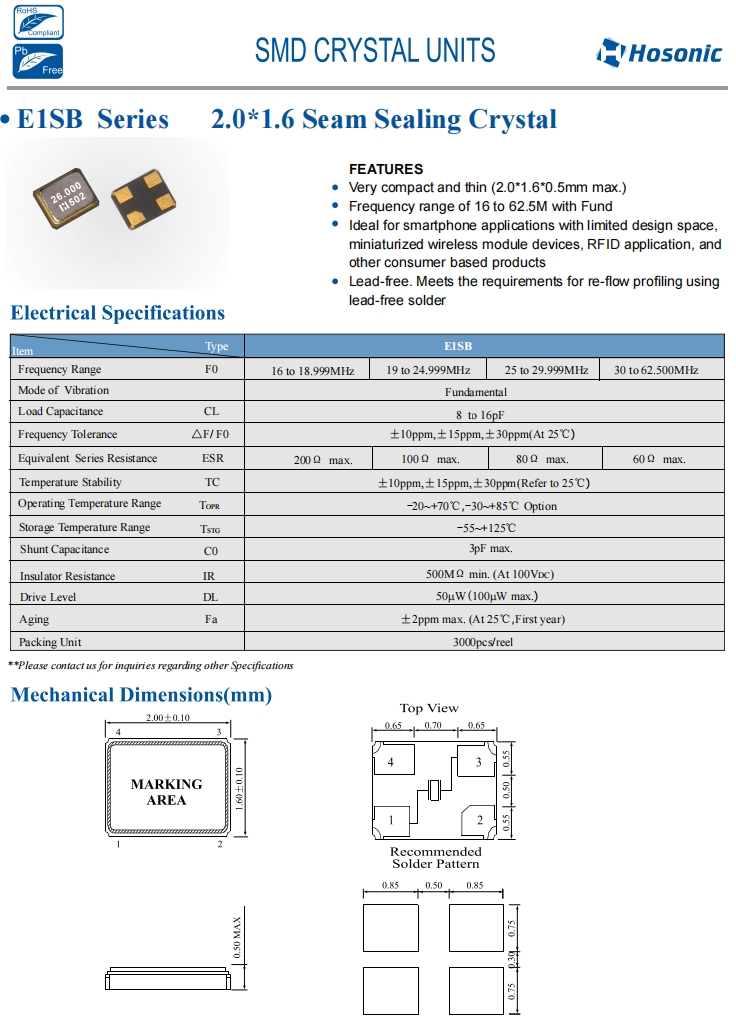

E1SB48E00001ME|Hosonic Crystal規格表

Item	Type	E1SB
Frequency Range	F0	48 MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	7 pF
Frequency Tolerance	ΔF/ F0	±10ppm (At 25℃)
Equivalent Series Resistance	ESR	80 Ω max.
Temperature Stability	TC	±15ppm (Refer to 25℃)
Operating Temperature Range	TOPR	-40~+85℃
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	3pF max.
Insulator Resistance	IR	500MΩ min. (At 100VDC)
Drive Level	DL	50 μW (100 μW max.）
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		3000pcs/reel

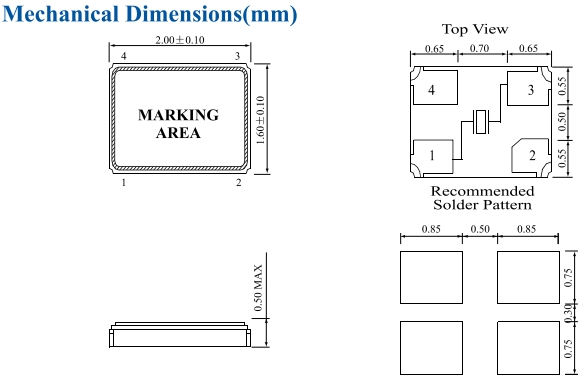

E1SB48E00001ME|Hosonic Crystal尺寸圖

原廠編碼	制造廠家	型號	頻率	負載電容	頻率容差	頻率穩定度
E3FB16.0000F18E33	Hosonic晶振	E3FB	16MHz	18pF	±30ppm	±30ppm
E3FB17.0000F18E33	Hosonic晶振	E3FB	17MHz	18pF	±30ppm	±30ppm
E3FB18.0000F18E33	Hosonic晶振	E3FB	18MHz	18pF	±30ppm	±30ppm
E3FB19.0000F18E33	Hosonic晶振	E3FB	19MHz	18pF	±30ppm	±30ppm
E3FB20.0000F18E33	Hosonic晶振	E3FB	20MHz	18pF	±30ppm	±30ppm
E3FB21.0000F18E33	Hosonic晶振	E3FB	21MHz	18pF	±30ppm	±30ppm
E3FB22.0000F18E33	Hosonic晶振	E3FB	22MHz	18pF	±30ppm	±30ppm
E3FB23.0000F18E33	Hosonic晶振	E3FB	23MHz	18pF	±30ppm	±30ppm
E3FB24.0000F18E33	Hosonic晶振	E3FB	24MHz	18pF	±30ppm	±30ppm
E3FB25.0000F18E33	Hosonic晶振	E3FB	25MHz	18pF	±30ppm	±30ppm
E3FB26.0000F18E33	Hosonic晶振	E3FB	26MHz	18pF	±30ppm	±30ppm
E3FB27.0000F18E33	Hosonic晶振	E3FB	27MHz	18pF	±30ppm	±30ppm
E3FB28.0000F18E33	Hosonic晶振	E3FB	28MHz	18pF	±30ppm	±30ppm
E3FB29.0000F18E33	Hosonic晶振	E3FB	29MHz	18pF	±30ppm	±30ppm
E3FB30.0000F18E33	Hosonic晶振	E3FB	30MHz	18pF	±30ppm	±30ppm
E3FB31.0000F18E33	Hosonic晶振	E3FB	31MHz	18pF	±30ppm	±30ppm
E3FB32.0000F18E33	Hosonic晶振	E3FB	32MHz	18pF	±30ppm	±30ppm
E3FB33.0000F18E33	Hosonic晶振	E3FB	33MHz	18pF	±30ppm	±30ppm
E3FB34.0000F18E33	Hosonic晶振	E3FB	34MHz	18pF	±30ppm	±30ppm
E3FB35.0000F18E33	Hosonic晶振	E3FB	35MHz	18pF	±30ppm	±30ppm
E3FB36.0000F18E33	Hosonic晶振	E3FB	36MHz	18pF	±30ppm	±30ppm
E3FB37.0000F18E33	Hosonic晶振	E3FB	37MHz	18pF	±30ppm	±30ppm
E3FB38.0000F18E33	Hosonic晶振	E3FB	38MHz	18pF	±30ppm	±30ppm
E3FB39.0000F18E33	Hosonic晶振	E3FB	39MHz	18pF	±30ppm	±30ppm
E3FB40.0000F18E33	Hosonic晶振	E3FB	40MHz	18pF	±30ppm	±30ppm
E3FB41.0000F18E33	Hosonic晶振	E3FB	41MHz	18pF	±30ppm	±30ppm
E3FB42.0000F18E33	Hosonic晶振	E3FB	42MHz	18pF	±30ppm	±30ppm
E3FB43.0000F18E33	Hosonic晶振	E3FB	43MHz	18pF	±30ppm	±30ppm
E3FB44.0000F18E33	Hosonic晶振	E3FB	44MHz	18pF	±30ppm	±30ppm
E3FB45.0000F18E33	Hosonic晶振	E3FB	45MHz	18pF	±30ppm	±30ppm
E3FB46.0000F18E33	Hosonic晶振	E3FB	46MHz	18pF	±30ppm	±30ppm
E3FB47.0000F18E33	Hosonic晶振	E3FB	47MHz	18pF	±30ppm	±30ppm
E3FB48.0000F18E33	Hosonic晶振	E3FB	48MHz	18pF	±30ppm	±30ppm
E3FB49.0000F18E33	Hosonic晶振	E3FB	49MHz	18pF	±30ppm	±30ppm
E3FB50.0000F18E33	Hosonic晶振	E3FB	50MHz	18pF	±30ppm	±30ppm
E3FB51.0000F18E33	Hosonic晶振	E3FB	51MHz	18pF	±30ppm	±30ppm
E3FB52.0000F18E33	Hosonic晶振	E3FB	52MHz	18pF	±30ppm	±30ppm
E3FB53.0000F18E33	Hosonic晶振	E3FB	53MHz	18pF	±30ppm	±30ppm
E3FB54.0000F18E33	Hosonic晶振	E3FB	54MHz	18pF	±30ppm	±30ppm
E3FB55.0000F18E33	Hosonic晶振	E3FB	55MHz	18pF	±30ppm	±30ppm
E3FB56.0000F18E33	Hosonic晶振	E3FB	56MHz	18pF	±30ppm	±30ppm
E3FB57.0000F18E33	Hosonic晶振	E3FB	57MHz	18pF	±30ppm	±30ppm
E3FB58.0000F18E33	Hosonic晶振	E3FB	58MHz	18pF	±30ppm	±30ppm
E3FB59.0000F18E33	Hosonic晶振	E3FB	59MHz	18pF	±30ppm	±30ppm
E3FB60.0000F18E33	Hosonic晶振	E3FB	60MHz	18pF	±30ppm	±30ppm
E3FB61.0000F18E33	Hosonic晶振	E3FB	61MHz	18pF	±30ppm	±30ppm
E3FB62.0000F18E33	Hosonic晶振	E3FB	62MHz	18pF	±30ppm	±30ppm
E3FB63.0000F18E33	Hosonic晶振	E3FB	63MHz	18pF	±30ppm	±30ppm
E3FB64.0000F18E33	Hosonic晶振	E3FB	64MHz	18pF	±30ppm	±30ppm
E3FB65.0000F18E33	Hosonic晶振	E3FB	65MHz	18pF	±30ppm	±30ppm
E3FB66.0000F18E33	Hosonic晶振	E3FB	66MHz	18pF	±30ppm	±30ppm
E2SB10.0000F10E12	Hosonic晶振	E2SB	10MHz	10pF	±10ppm	±10ppm
E2SB12.0000F10E11	Hosonic晶振	E2SB	12MHz	10pF	±10ppm	±10ppm
E2SB16.0000F10E12	Hosonic晶振	E2SB	16MHz	10pF	±10ppm	±10ppm
E2SB17.0000F10E12	Hosonic晶振	E2SB	17MHz	10pF	±10ppm	±10ppm
E2SB18.4320F10E12	Hosonic晶振	E2SB	18.432MHz	10pF	±10ppm	±10ppm
E2SB18.0000F10E12	Hosonic晶振	E2SB	18MHz	10pF	±10ppm	±10ppm
E2SB19.0000F10E12	Hosonic晶振	E2SB	19MHz	10pF	±10ppm	±10ppm
E2SB20.0000F10E12	Hosonic晶振	E2SB	20MHz	10pF	±10ppm	±10ppm
E2SB21.0000F10E12	Hosonic晶振	E2SB	21MHz	10pF	±10ppm	±10ppm
E2SB22.0000F10E12	Hosonic晶振	E2SB	22MHz	10pF	±10ppm	±10ppm
E2SB23.0000F10E12	Hosonic晶振	E2SB	23MHz	10pF	±10ppm	±10ppm
E2SB24.0000F10E12	Hosonic晶振	E2SB	24MHz	10pF	±10ppm	±10ppm
E2SB25.0000F10E12	Hosonic晶振	E2SB	25MHz	10pF	±10ppm	±10ppm
E49A12E00000ME	Hosonic晶振	E49A	12 MHz	20 pF	±30 ppm	±30 ppm
E49A13E00000ME	Hosonic晶振	E49A	13 MHz	20 pF	±30 ppm	±30 ppm
E49A14E00000ME	Hosonic晶振	E49A	14 MHz	20 pF	±30 ppm	±30 ppm
E49A15E00000ME	Hosonic晶振	E49A	15 MHz	20 pF	±30 ppm	±30 ppm
E49A16E00000ME	Hosonic晶振	E49A	16 MHz	20 pF	±30 ppm	±30 ppm
E49A17E00000ME	Hosonic晶振	E49A	17 MHz	20 pF	±30 ppm	±30 ppm
E49A18E00000ME	Hosonic晶振	E49A	18 MHz	20 pF	±30 ppm	±30 ppm
E49A19E00000ME	Hosonic晶振	E49A	19 MHz	20 pF	±30 ppm	±30 ppm
E49A20E00000ME	Hosonic晶振	E49A	20 MHz	20 pF	±30 ppm	±30 ppm
E49A21E00000ME	Hosonic晶振	E49A	21 MHz	20 pF	±30 ppm	±30 ppm
E49A22E00000ME	Hosonic晶振	E49A	22 MHz	20 pF	±30 ppm	±30 ppm
E49A23E00000ME	Hosonic晶振	E49A	23 MHz	20 pF	±30 ppm	±30 ppm
E49A24E00000ME	Hosonic晶振	E49A	24 MHz	20 pF	±30 ppm	±30 ppm
E49A25E00000ME	Hosonic晶振	E49A	25 MHz	20 pF	±30 ppm	±30 ppm
E49A26E00000ME	Hosonic晶振	E49A	26 MHz	20 pF	±30 ppm	±30 ppm
E49A27E00000ME	Hosonic晶振	E49A	27 MHz	20 pF	±30 ppm	±30 ppm
E49A28E00000ME	Hosonic晶振	E49A	28 MHz	20 pF	±30 ppm	±30 ppm
E49A29E00000ME	Hosonic晶振	E49A	29 MHz	20 pF	±30 ppm	±30 ppm
E49A30E00000ME	Hosonic晶振	E49A	30 MHz	20 pF	±30 ppm	±30 ppm
E49A31E00000ME	Hosonic晶振	E49A	31 MHz	20 pF	±30 ppm	±30 ppm
E49A32E00000ME	Hosonic晶振	E49A	32 MHz	20 pF	±30 ppm	±30 ppm
E49A33E00000ME	Hosonic晶振	E49A	33 MHz	20 pF	±30 ppm	±30 ppm
E49A34E00000ME	Hosonic晶振	E49A	34 MHz	20 pF	±30 ppm	±30 ppm
E49A35E00000ME	Hosonic晶振	E49A	35 MHz	20 pF	±30 ppm	±30 ppm
E49A36E00000ME	Hosonic晶振	E49A	36 MHz	20 pF	±30 ppm	±30 ppm
E49A37E00000ME	Hosonic晶振	E49A	37 MHz	20 pF	±30 ppm	±30 ppm
E49A38E00000ME	Hosonic晶振	E49A	38 MHz	20 pF	±30 ppm	±30 ppm
E49A39E00000ME	Hosonic晶振	E49A	39 MHz	20 pF	±30 ppm	±30 ppm
E49A40E00000ME	Hosonic晶振	E49A	40 MHz	20 pF	±30 ppm	±30 ppm
E49A41E00000ME	Hosonic晶振	E49A	41 MHz	20 pF	±30 ppm	±30 ppm
E49A42E00000ME	Hosonic晶振	E49A	42 MHz	20 pF	±30 ppm	±30 ppm
E49A43E00000ME	Hosonic晶振	E49A	43 MHz	20 pF	±30 ppm	±30 ppm
E49A44E00000ME	Hosonic晶振	E49A	44 MHz	20 pF	±30 ppm	±30 ppm
E49A45E00000ME	Hosonic晶振	E49A	45 MHz	20 pF	±30 ppm	±30 ppm
E49A46E00000ME	Hosonic晶振	E49A	46 MHz	20 pF	±30 ppm	±30 ppm
E49A47E00000ME	Hosonic晶振	E49A	47 MHz	20 pF	±30 ppm	±30 ppm
E49A48E00000ME	Hosonic晶振	E49A	48 MHz	20 pF	±30 ppm	±30 ppm
E49A49E00000ME	Hosonic晶振	E49A	49 MHz	20 pF	±30 ppm	±30 ppm
E49A50E00000ME	Hosonic晶振	E49A	50 MHz	20 pF	±30 ppm	±30 ppm
E49A51E00000ME	Hosonic晶振	E49A	51 MHz	20 pF	±30 ppm	±30 ppm
E49A52E00000ME	Hosonic晶振	E49A	52 MHz	20 pF	±30 ppm	±30 ppm
E49A53E00000ME	Hosonic晶振	E49A	53 MHz	20 pF	±30 ppm	±30 ppm
E49A54E00000ME	Hosonic晶振	E49A	54 MHz	20 pF	±30 ppm	±30 ppm
E49A55E00000ME	Hosonic晶振	E49A	55 MHz	20 pF	±30 ppm	±30 ppm
E49A56E00000ME	Hosonic晶振	E49A	56 MHz	20 pF	±30 ppm	±30 ppm
E49A57E00000ME	Hosonic晶振	E49A	57 MHz	20 pF	±30 ppm	±30 ppm
E2SB26.0000F10E12	Hosonic晶振	E2SB	26MHz	10pF	±10ppm	±10ppm
E2SB27.0000F10E12	Hosonic晶振	E2SB	27MHz	10pF	±10ppm	±10ppm
E2SB28.0000F10E12	Hosonic晶振	E2SB	28MHz	10pF	±10ppm	±10ppm
E2SB29.0000F10E12	Hosonic晶振	E2SB	29MHz	10pF	±10ppm	±10ppm
E2SB30.0000F10E12	Hosonic晶振	E2SB	30MHz	10pF	±10ppm	±10ppm
E2SB31.0000F10E12	Hosonic晶振	E2SB	31MHz	10pF	±10ppm	±10ppm
E2SB32.0000F10E12	Hosonic晶振	E2SB	32MHz	10pF	±10ppm	±10ppm
E2SB33.0000F10E12	Hosonic晶振	E2SB	33MHz	10pF	±10ppm	±10ppm
E2SB34.0000F10E12	Hosonic晶振	E2SB	34MHz	10pF	±10ppm	±10ppm
E2SB35.0000F10E12	Hosonic晶振	E2SB	35MHz	10pF	±10ppm	±10ppm
E2SB36.0000F10E12	Hosonic晶振	E2SB	36MHz	10pF	±10ppm	±10ppm
E2SB37.0000F10E12	Hosonic晶振	E2SB	37MHz	10pF	±10ppm	±10ppm
E2SB38.0000F10E12	Hosonic晶振	E2SB	38MHz	10pF	±10ppm	±10ppm
E2SB39.0000F10E12	Hosonic晶振	E2SB	39MHz	10pF	±10ppm	±10ppm
E2SB40.0000F10E12	Hosonic晶振	E2SB	40MHz	10pF	±10ppm	±10ppm
E2SB41.0000F10E12	Hosonic晶振	E2SB	41MHz	10pF	±10ppm	±10ppm
E2SB42.0000F10E12	Hosonic晶振	E2SB	42MHz	10pF	±10ppm	±10ppm
E2SB43.0000F10E12	Hosonic晶振	E2SB	43MHz	10pF	±10ppm	±10ppm
E2SB44.0000F10E12	Hosonic晶振	E2SB	44MHz	10pF	±10ppm	±10ppm
E2SB45.0000F10E12	Hosonic晶振	E2SB	45MHz	10pF	±10ppm	±10ppm
E2SB46.0000F10E12	Hosonic晶振	E2SB	46MHz	10pF	±10ppm	±10ppm
E2SB47.0000F10E12	Hosonic晶振	E2SB	47MHz	10pF	±10ppm	±10ppm
E2SB48.0000F10E12	Hosonic晶振	E2SB	48MHz	10pF	±10ppm	±10ppm
E2SB49.0000F10E12	Hosonic晶振	E2SB	49MHz	10pF	±10ppm	±10ppm
E2SB50.0000F10E12	Hosonic晶振	E2SB	50MHz	10pF	±10ppm	±10ppm
E2SB51.0000F10E12	Hosonic晶振	E2SB	51MHz	10pF	±10ppm	±10ppm
E2SB52.0000F10E12	Hosonic晶振	E2SB	52MHz	10pF	±10ppm	±10ppm
E2SB53.0000F10E12	Hosonic晶振	E2SB	53MHz	10pF	±10ppm	±10ppm
E2SB54.0000F10E12	Hosonic晶振	E2SB	54MHz	10pF	±10ppm	±10ppm
E2SB55.0000F10E12	Hosonic晶振	E2SB	55MHz	10pF	±10ppm	±10ppm
E2SB56.0000F10E12	Hosonic晶振	E2SB	56MHz	10pF	±10ppm	±10ppm
E3SB13.0000F18E22	Hosonic晶振	E3SB	13 MHz	18 pF	±20 ppm	±20 ppm
E3SB14.0000F18E22	Hosonic晶振	E3SB	14 MHz	18 pF	±20 ppm	±20 ppm
E3SB15.0000F18E22	Hosonic晶振	E3SB	15 MHz	18 pF	±20 ppm	±20 ppm
E3SB16.0000F18E22	Hosonic晶振	E3SB	16 MHz	18 pF	±20 ppm	±20 ppm
E3SB17.0000F18E22	Hosonic晶振	E3SB	17 MHz	18 pF	±20 ppm	±20 ppm
E3SB18.0000F18E22	Hosonic晶振	E3SB	18 MHz	18 pF	±20 ppm	±20 ppm
E3SB19.0000F18E22	Hosonic晶振	E3SB	19 MHz	18 pF	±20 ppm	±20 ppm
E3SB20.0000F18E22	Hosonic晶振	E3SB	20 MHz	18 pF	±20 ppm	±20 ppm
E3SB21.0000F18E22	Hosonic晶振	E3SB	21 MHz	18 pF	±20 ppm	±20 ppm
E3SB22.0000F18E22	Hosonic晶振	E3SB	22 MHz	18 pF	±20 ppm	±20 ppm
E3SB23.0000F18E22	Hosonic晶振	E3SB	23 MHz	18 pF	±20 ppm	±20 ppm
E3SB24.0000F18E22	Hosonic晶振	E3SB	24 MHz	18 pF	±20 ppm	±20 ppm
E3SB25.0000F18E22	Hosonic晶振	E3SB	25 MHz	18 pF	±20 ppm	±20 ppm
E3SB26.0000F18E22	Hosonic晶振	E3SB	26 MHz	18 pF	±20 ppm	±20 ppm
E3SB27.0000F18E22	Hosonic晶振	E3SB	27 MHz	18 pF	±20 ppm	±20 ppm
E3SB28.0000F18E22	Hosonic晶振	E3SB	28 MHz	18 pF	±20 ppm	±20 ppm
E3SB29.0000F18E22	Hosonic晶振	E3SB	29 MHz	18 pF	±20 ppm	±20 ppm
E3SB30.0000F18E22	Hosonic晶振	E3SB	30 MHz	18 pF	±20 ppm	±20 ppm
E3SB31.0000F18E22	Hosonic晶振	E3SB	31 MHz	18 pF	±20 ppm	±20 ppm
E3SB32.0000F18E22	Hosonic晶振	E3SB	32 MHz	18 pF	±20 ppm	±20 ppm
E3SB33.0000F18E22	Hosonic晶振	E3SB	33 MHz	18 pF	±20 ppm	±20 ppm
E3SB34.0000F18E22	Hosonic晶振	E3SB	34 MHz	18 pF	±20 ppm	±20 ppm
E3SB35.0000F18E22	Hosonic晶振	E3SB	35 MHz	18 pF	±20 ppm	±20 ppm
E3SB36.0000F18E22	Hosonic晶振	E3SB	36 MHz	18 pF	±20 ppm	±20 ppm
E3SB37.0000F18E22	Hosonic晶振	E3SB	37 MHz	18 pF	±20 ppm	±20 ppm
E3SB38.0000F18E22	Hosonic晶振	E3SB	38 MHz	18 pF	±20 ppm	±20 ppm
E3SB39.0000F18E22	Hosonic晶振	E3SB	39 MHz	18 pF	±20 ppm	±20 ppm
E3SB40.0000F18E22	Hosonic晶振	E3SB	40 MHz	18 pF	±20 ppm	±20 ppm
E3SB41.0000F18E22	Hosonic晶振	E3SB	41 MHz	18 pF	±20 ppm	±20 ppm
E3SB42.0000F18E22	Hosonic晶振	E3SB	42 MHz	18 pF	±20 ppm	±20 ppm
E3SB43.0000F18E22	Hosonic晶振	E3SB	43 MHz	18 pF	±20 ppm	±20 ppm
E3SB44.0000F18E22	Hosonic晶振	E3SB	44 MHz	18 pF	±20 ppm	±20 ppm
E3SB45.0000F18E22	Hosonic晶振	E3SB	45MHz	18 pF	±20 ppm	±20 ppm
E3SB46.0000F18E22	Hosonic晶振	E3SB	46MHz	18 pF	±20 ppm	±20 ppm
E3SB47.0000F18E22	Hosonic晶振	E3SB	47MHz	18 pF	±20 ppm	±20 ppm
E3SB48.0000F18E22	Hosonic晶振	E3SB	48MHz	18 pF	±20 ppm	±20 ppm
E3SB49.0000F18E22	Hosonic晶振	E3SB	49MHz	18 pF	±20 ppm	±20 ppm
E3SB50.0000F18E22	Hosonic晶振	E3SB	50MHz	18 pF	±20 ppm	±20 ppm
E3SB51.0000F18E22	Hosonic晶振	E3SB	51MHz	18 pF	±20 ppm	±20 ppm
E3SB52.0000F18E22	Hosonic晶振	E3SB	52MHz	18 pF	±20 ppm	±20 ppm
E3SB53.0000F18E22	Hosonic晶振	E3SB	53MHz	18 pF	±20 ppm	±20 ppm
E3SB54.0000F18E22	Hosonic晶振	E3SB	54MHz	18 pF	±20 ppm	±20 ppm
E3SB55.0000F18E22	Hosonic晶振	E3SB	55MHz	18 pF	±20 ppm	±20 ppm
E3SB56.0000F18E22	Hosonic晶振	E3SB	56MHz	18 pF	±20 ppm	±20 ppm
E49A12E00000ME	Hosonic晶振	E49A	12 MHz	20 pF	±30 ppm	±30 ppm
E49A13E00000ME	Hosonic晶振	E49A	13 MHz	20 pF	±30 ppm	±30 ppm
E49A14E00000ME	Hosonic晶振	E49A	14 MHz	20 pF	±30 ppm	±30 ppm
E49A15E00000ME	Hosonic晶振	E49A	15 MHz	20 pF	±30 ppm	±30 ppm
E49A16E00000ME	Hosonic晶振	E49A	16 MHz	20 pF	±30 ppm	±30 ppm
E49A17E00000ME	Hosonic晶振	E49A	17 MHz	20 pF	±30 ppm	±30 ppm
E49A18E00000ME	Hosonic晶振	E49A	18 MHz	20 pF	±30 ppm	±30 ppm
E49A19E00000ME	Hosonic晶振	E49A	19 MHz	20 pF	±30 ppm	±30 ppm
E49A20E00000ME	Hosonic晶振	E49A	20 MHz	20 pF	±30 ppm	±30 ppm
E49A21E00000ME	Hosonic晶振	E49A	21 MHz	20 pF	±30 ppm	±30 ppm
E49A22E00000ME	Hosonic晶振	E49A	22 MHz	20 pF	±30 ppm	±30 ppm
E49A23E00000ME	Hosonic晶振	E49A	23 MHz	20 pF	±30 ppm	±30 ppm
E49A24E00000ME	Hosonic晶振	E49A	24 MHz	20 pF	±30 ppm	±30 ppm
E49A25E00000ME	Hosonic晶振	E49A	25 MHz	20 pF	±30 ppm	±30 ppm
E49A26E00000ME	Hosonic晶振	E49A	26 MHz	20 pF	±30 ppm	±30 ppm
E49A27E00000ME	Hosonic晶振	E49A	27 MHz	20 pF	±30 ppm	±30 ppm
E49A28E00000ME	Hosonic晶振	E49A	28 MHz	20 pF	±30 ppm	±30 ppm
E49A29E00000ME	Hosonic晶振	E49A	29 MHz	20 pF	±30 ppm	±30 ppm
E49A30E00000ME	Hosonic晶振	E49A	30 MHz	20 pF	±30 ppm	±30 ppm
E49A31E00000ME	Hosonic晶振	E49A	31 MHz	20 pF	±30 ppm	±30 ppm
E49A32E00000ME	Hosonic晶振	E49A	32 MHz	20 pF	±30 ppm	±30 ppm
E49A33E00000ME	Hosonic晶振	E49A	33 MHz	20 pF	±30 ppm	±30 ppm
E49A34E00000ME	Hosonic晶振	E49A	34 MHz	20 pF	±30 ppm	±30 ppm
E49A35E00000ME	Hosonic晶振	E49A	35 MHz	20 pF	±30 ppm	±30 ppm
E49A36E00000ME	Hosonic晶振	E49A	36 MHz	20 pF	±30 ppm	±30 ppm
E49A37E00000ME	Hosonic晶振	E49A	37 MHz	20 pF	±30 ppm	±30 ppm
E49A38E00000ME	Hosonic晶振	E49A	38 MHz	20 pF	±30 ppm	±30 ppm
E49A39E00000ME	Hosonic晶振	E49A	39 MHz	20 pF	±30 ppm	±30 ppm
E49A40E00000ME	Hosonic晶振	E49A	40 MHz	20 pF	±30 ppm	±30 ppm
E49A41E00000ME	Hosonic晶振	E49A	41 MHz	20 pF	±30 ppm	±30 ppm
E49A42E00000ME	Hosonic晶振	E49A	42 MHz	20 pF	±30 ppm	±30 ppm
E49A43E00000ME	Hosonic晶振	E49A	43 MHz	20 pF	±30 ppm	±30 ppm
E49A44E00000ME	Hosonic晶振	E49A	44 MHz	20 pF	±30 ppm	±30 ppm
E49A45E00000ME	Hosonic晶振	E49A	45MHz	20 pF	±30 ppm	±30 ppm
E49A46E00000ME	Hosonic晶振	E49A	46MHz	20 pF	±30 ppm	±30 ppm
E49A47E00000ME	Hosonic晶振	E49A	47MHz	20 pF	±30 ppm	±30 ppm
E49A48E00000ME	Hosonic晶振	E49A	48MHz	20 pF	±30 ppm	±30 ppm
E49B12E000022E	Hosonic晶振	E49B	12 MHz	10 pF	±30 ppm	±30 ppm
E49B13E000022E	Hosonic晶振	E49B	13 MHz	10 pF	±30 ppm	±30 ppm
E49B14E000022E	Hosonic晶振	E49B	14 MHz	10 pF	±30 ppm	±30 ppm
E49B15E000022E	Hosonic晶振	E49B	15 MHz	10 pF	±30 ppm	±30 ppm
E49B16E000022E	Hosonic晶振	E49B	16 MHz	10 pF	±30 ppm	±30 ppm
E49B17E000022E	Hosonic晶振	E49B	17 MHz	10 pF	±30 ppm	±30 ppm
E49B18E000022E	Hosonic晶振	E49B	18 MHz	10 pF	±30 ppm	±30 ppm
E49B19E000022E	Hosonic晶振	E49B	19 MHz	10 pF	±30 ppm	±30 ppm
E49B20E000022E	Hosonic晶振	E49B	20 MHz	10 pF	±30 ppm	±30 ppm
E49B21E000022E	Hosonic晶振	E49B	21 MHz	10 pF	±30 ppm	±30 ppm
E49B22E000022E	Hosonic晶振	E49B	22 MHz	10 pF	±30 ppm	±30 ppm
E49B23E000022E	Hosonic晶振	E49B	23 MHz	10 pF	±30 ppm	±30 ppm

1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 　　何疑問.讓您的消費得到保障。
3.質量保證，誠信為上　　 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 　為您的產品量身訂制,免費取樣,
　　　　　　為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.

　深圳市泰河電子有限公司
　代理:EPSON,KDS,CITIZEN,SEIKO
　電話:0755-27872782
　手機:13824306246
　郵箱:taiheth@163.com
　Q Q:794113422
　地址:深圳市寶安區40區33號工業城6樓
　網址：http://www.whhxsm.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
