愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品

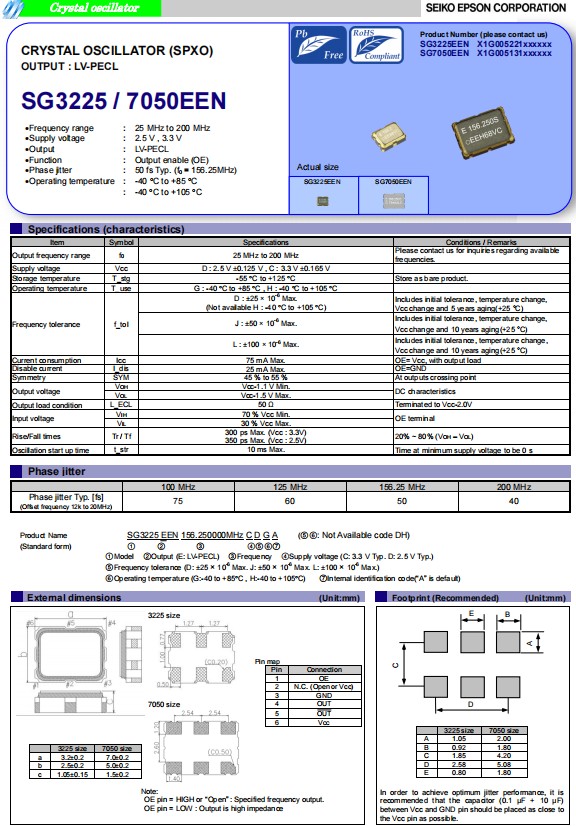

愛普生晶振SG3225EEN，小體積尺寸3.2x2.5mm有源晶振，六腳貼片晶振，石英晶體振蕩器，LV-PECL輸出晶振，頻率范圍:25MHz至200MHz，2.5V，3.3V低電源電壓，具有超小型，輕薄型，低電源電壓，低損耗，低耗能等特點，被廣泛應用于5G通訊網絡設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信，10G以太網及各種頻率控制設備上。
SG3225EEN晶振應用于5G通訊網絡設備,X1G005221000700,LV-PECL輸出晶振

Product Number	Model	愛普生晶振	LxWxH	Output Wave	Supply Voltage
X1G005221000100	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221000200	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221000300	SG3225EEN	125.003125 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221000400	SG3225EEN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221000500	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221000700	SG3225EEN	156.253906 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221000800	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221001300	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221001400	SG3225EEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221001800	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221001900	SG3225EEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221002100	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221002300	SG3225EEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221002400	SG3225EEN	166.015625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221002800	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221003000	SG3225EEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221003100	SG3225EEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221003200	SG3225EEN	160.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221003300	SG3225EEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V

X1G005221003400	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221003600	SG3225EEN	54.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221003700	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221003800	SG3225EEN	25.000625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221003900	SG3225EEN	170.016000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221004200	SG3225EEN	163.387607 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221004300	SG3225EEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221004400	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221004800	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221005100	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221005400	SG3225EEN	146.370000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221005500	SG3225EEN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221005600	SG3225EEN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V
X1G005221100100	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1G005221100200	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1G005221100300	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1G005221100500	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1G005221100700	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1G005221100800	SG3225EEN	156.253906 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1G005221101000	SG3225EEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V

SG3225EEN晶振應用于5G通訊網絡設備,X1G005221000700,LV-PECL輸出晶振
差分晶振是普通貼片晶振所不能夠達到的,差分晶振具有低電平,低抖動,低功耗等特性.差分晶振作為目前行業中高要求,要技術石英晶體振蕩器,具有相位低,損耗低的特點,愛普生差分晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理雙級信號,對外部電磁干擾(EMI)是高度免疫的,差分石英晶振滿足市場需求,實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性.
