首頁進口晶振 NDK石英晶振NZ2016SH-24.000MHZ-NSC5022C晶振

NZ2016SH-24.000MHZ-NSC5022C晶振

產品型號：19252892
晶振頻率：24.000MHZ
晶振尺寸：2.0*1.6*0.8mm
產品應用： NDK汽車晶振,NZ2016SH-24.000MHZ-NSC5022C晶振,2016 24M OSC 3.3V 50ppm 汽車導航系統晶振,汽車音響設備晶振,汽車攝像頭專用晶振,無線模塊晶振,NDK通信設備晶振,NZ2016SH晶振,2016晶振產品主要應用于汽車導航系統,汽...

NDK汽車晶振,NZ2016SH-24.000MHZ-NSC5022C晶振,2016 24M OSC 3.3V 50ppm 汽車導航系統晶振,汽車音響設備晶振,汽車攝像頭專用晶振,無線模塊晶振,NDK通信設備晶振,NZ2016SH晶振,2016mm晶振
產品主要應用于汽車導航系統,汽車音響設備和攝像頭,也同樣適用于智能手機,平板電腦,筆記本電腦,PC卡等。在音頻設備和無線模塊，SDH/SONET、WiMAX、LTE等通信設備和基站同樣適用。

NZ2016SH-24.000MHZ-NSC5022C晶振參數表

Item	Symbol	Value					Unit
Nominal frequency range	fnom	1.5≦F≦ 80					MHz
Package size (L×W×H)	-	2.0 × 1.6 × 0.7					mm
Supply voltage	Vcc	+1.8 to +3.3					V
Current consumption	ICC	Max. 9.0					mA
Stand-by current	IST	Max. 20					μA
Output specification	-	CMOS					-
Load	CL	Max. 15					pF
Storage temperature range	Tstr	-55 to +125					℃
Operating temperature range	Topr	-40 to +125	-40 to +105	-40 to +85	-10 to +70	-10 to +60	℃
Overall frequency tolerance	Df/fnom	Max. ±100	Max. ±50	Max. ±50	Max. ±30	Max. ±20	ppm
Output voltage	VOL	Max. 0.1 VCC					V
Output voltage	VOH	Min. 0.9 VCC					V
Rise (tr), fall (tf) time +1.8V	tr/tf	Max.6					ns
Rise (tr), fall (tf) time +2.5 to +3.3V	tr/tf	Max.5					ns
Symmetry	SYM	45 to 55					%
Start-up time	tsu	Max. 4					ms

NZ2016SH-24.000MHZ-NSC5022C晶振特征
● 支持 –40 至 +125°C 的寬溫度范圍。
● 超緊湊輕便。尺寸： 2.0 x 1.6 x 0.7 毫米，重量： 0.01 克.
● 該晶體時鐘振蕩器可以不容易支持低頻（從1.5MHz開始）
● 使用相同尺寸的晶體單元實現。
● 編帶單元可實現自動安裝 IR 回流焊（無鉛）是可能的。
● 無鉛。
● 符合AEC-Q200標準。

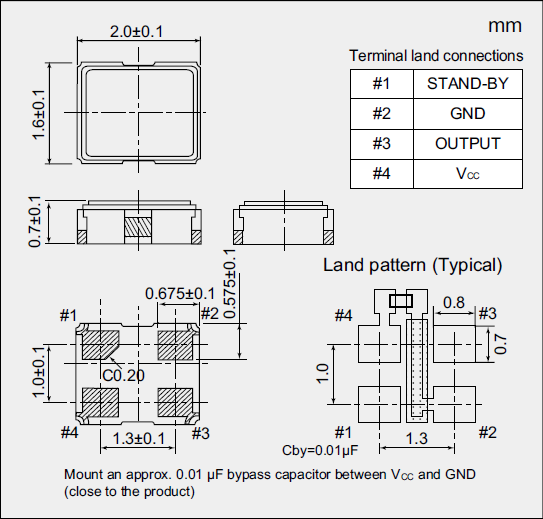

NZ2016SH-24.000MHZ-NSC5022C晶振尺寸圖電平圖

Overall frequency tolerance	Operating temperature range	Supply voltage（V）
（ppm）	（°C）	Typ. +1.8	Typ. +2.5	Typ. +3.0	Typ. +3.3
±100	-40 to +125	NSC5019A	NSC5019B	NSC5019C	NSC5019D
±50	-40 to +105	NSC5021A	NSC5021B	NSC5021C	NSC5021D
±50	-40 to +85	NSC5022A	NSC5022B	NSC5022C	NSC5022D
±30	-10 to +70	NSC5024A	NSC5024B	NSC5024C	NSC5024D
±20	-10 to +60	NSC5025A	NSC5025B	NSC5025C	NSC5025D

訂購產品時請注明型號名稱、頻率和規格編號。

有關規格的更多問題，請隨時與我們聯系。
微信：13824306246 QQ:794113422 郵箱：taiheth@163.com 座機:0755-27872782

更多相關NDK晶振型號

原廠編碼	型號	頻率	輸出	電壓	頻率穩定度	工作溫度
NZ2520SB-32.768KHZ-NSA3534C	NZ2520S	32.768kHz	CMOS	1.8V	±30ppm	-40°C ~ 85°C
NZ2520SB-32.768KHZ-NSA3534C	NZ2520S	32.768kHz	CMOS	1.8V	±30ppm	-40°C ~ 85°C
NZ2520SB-32.768KHZ-NSA3534C	NZ2520S	32.768kHz	CMOS	1.8V	±30ppm	-40°C ~ 85°C
NZ2520SB-32.768KHZ-NSA3536C	NZ2520S	32.768kHz	CMOS	3.3V	±30ppm	-40°C ~ 85°C
NZ2520SB-32.768KHZ-NSA3536C	NZ2520S	32.768kHz	CMOS	3.3V	±30ppm	-40°C ~ 85°C
NZ2520SB-32.768KHZ-NSA3536C	NZ2520S	32.768kHz	CMOS	3.3V	±30ppm	-40°C ~ 85°C
NZ2520SB-32.768KHZ-NSA3535C	NZ2520S	32.768kHz	CMOS	2.5V	±30ppm	-40°C ~ 85°C
NZ2520SB-32.768KHZ-NSA3535C	NZ2520S	32.768kHz	CMOS	2.5V	±30ppm	-40°C ~ 85°C
NZ2520SB-32.768KHZ-NSA3535C	NZ2520S	32.768kHz	CMOS	2.5V	±30ppm	-40°C ~ 85°C
NZ2520SB-2.750000MHZ	NZ2520SB	2.75MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-2.750000MHZ	NZ2520SB	2.75MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-2.750000MHZ	NZ2520SB	2.75MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-7.600000MHZ	NZ2520SB	7.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-5.000000MHZ	NZ2520SB	5MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-10.000000MHZ	NZ2520SB	10MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-10.000000MHZ	NZ2520SB	10MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-10.000000MHZ	NZ2520SB	10MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-19.200MHZ	NZ2520SB	19.2MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-19.200MHZ	NZ2520SB	19.2MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-19.200MHZ	NZ2520SB	19.2MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-20.000000MHZ	NZ2520SB	20MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-20.000000MHZ	NZ2520SB	20MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-20.000000MHZ	NZ2520SB	20MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-22.000000MHZ	NZ2520SB	22MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-25.600MHZ	NZ2520SB	25.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-25.600MHZ	NZ2520SB	25.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-25.600MHZ	NZ2520SB	25.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-38.900MHZ	NZ2520SB	38.9MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-40.000000MHZ	NZ2520SB	40MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-41.360MHZ	NZ2520SB	41.36MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SB-44.000000MHZ	NZ2520SB	44MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-2.750000MHZ	NZ2520SA	2.75MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-2.750000MHZ	NZ2520SA	2.75MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-2.750000MHZ	NZ2520SA	2.75MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-5.000000MHZ	NZ2520SA	5MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-5.000000MHZ	NZ2520SA	5MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-5.000000MHZ	NZ2520SA	5MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-7.600000MHZ	NZ2520SA	7.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-7.600000MHZ	NZ2520SA	7.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-7.600000MHZ	NZ2520SA	7.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-10.000000MHZ	NZ2520SA	10MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-10.000000MHZ	NZ2520SA	10MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-10.000000MHZ	NZ2520SA	10MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-20.000000MHZ	NZ2520SA	20MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-20.000000MHZ	NZ2520SA	20MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-20.000000MHZ	NZ2520SA	20MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-22.000000MHZ	NZ2520SA	22MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-22.000000MHZ	NZ2520SA	22MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-22.000000MHZ	NZ2520SA	22MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-40.000000MHZ	NZ2520SA	40MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-40.000000MHZ	NZ2520SA	40MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-40.000000MHZ	NZ2520SA	40MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-44.000000MHZ	NZ2520SA	44MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-44.000000MHZ	NZ2520SA	44MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-44.000000MHZ	NZ2520SA	44MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-19.200MHZ	NZ2520SA	19.2MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-19.200MHZ	NZ2520SA	19.2MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-19.200MHZ	NZ2520SA	19.2MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-25.600MHZ	NZ2520SA	25.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-25.600MHZ	NZ2520SA	25.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-25.600MHZ	NZ2520SA	25.6MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-38.900MHZ	NZ2520SA	38.9MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-38.900MHZ	NZ2520SA	38.9MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-38.900MHZ	NZ2520SA	38.9MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-41.360MHZ	NZ2520SA	41.36MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-41.360MHZ	NZ2520SA	41.36MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
NZ2520SA-41.360MHZ	NZ2520SA	41.36MHz	CMOS	3V	±30ppm	-10°C ~ 60°C
