SKYWORKS晶振

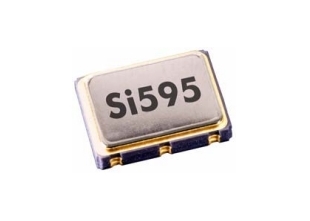

- 產品型號：8632812
- 晶振頻率：93.312MHz
- 晶振尺寸：7.0*5.0*1.5mm
- 產品應用： Skyworks壓控晶振,Si595有源晶振,石英晶體振蕩器,595AC93M3120DGR晶振,低抖動晶振,VCXO晶振,LV-PECL晶振,7050mm晶振,差分晶振,六腳貼片晶振,6G光纖通道晶振,電信交換機晶振,時鐘恢復和抖動清除鎖相環晶振.
-
Skyworks壓控晶振,595AC93M3120DGR,6G光纖通道晶振
Skyworks壓控晶振,595AC93M3120DGR,6G光纖通道晶振,Skyworks壓控晶振,Si595有源晶振,石英晶體振蕩器,采用DSPLL時鐘合成提供電源噪聲抑制,簡化了在噪聲環境中生成低抖動時鐘的任務,Si595基于ic的VCXO可在工廠配置,適用于各種用戶規格,包括頻率,電源電壓,輸出格式,調諧斜率和絕對拉力范圍(APR),特定的配置是工廠在出貨時編程,從而消除了與定制振蕩器相關的長交貨時間,VCXO晶振,LV-PECL晶振,7050mm晶振,差分晶振,六腳貼片晶振,6G光纖通道晶振,電信交換機晶振,時鐘恢復和抖動清除鎖相環晶振.
Skyworks壓控晶振,595AC93M3120DGR,6G光纖通道晶振特點：
•可與任意速率輸出頻率從10MHz到810MHz
•第三代DSPLL®具有卓越的抖動性能
•頻率穩定性優于SAW-based振蕩器
•內部固定基模晶體頻率保證高可靠性和低老化
•可用CMOS, LVPECL，LVDS和CML輸出
•3.3, 2.5 V和1.8V電源選項
•工業標準的5 × 7mm和3.2×2.5mm封裝
•無鉛，符合RoHS標準
•工作溫度范圍-40至+85ºC
Skyworks壓控晶振,595AC93M3120DGR,6G光纖通道晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 93.312MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±50 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 135mA Max |
LVPECL
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOD | 1.9VPP Max |
LVPECL
|
| VO | 1.25V Max | ||
| 輸入電壓 | VIH | 0.75×VDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降時間 | tr/tf | 350ps Max |
LVPECL
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.5ps Max |
Differential Formats
|
.jpg)
Skyworks壓控晶振,595AC93M3120DGR,6G光纖通道晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| 595AC10M0000DGR | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC16M3840DGR | Skyworks Solutions Inc. | Si595 | 16.384 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC32M7680DGR | Skyworks Solutions Inc. | Si595 | 32.768 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC77M7600DGR | Skyworks Solutions Inc. | Si595 | 77.76 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC93M3120DGR | Skyworks Solutions Inc. | Si595 | 93.312 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF32M0000DGR | Skyworks Solutions Inc. | Si595 | 32 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF54M0000DGR | Skyworks Solutions Inc. | Si595 | 54 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG100M000DGR | Skyworks Solutions Inc. | Si595 | 100 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG10M0000DGR | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG125M000DGR | Skyworks Solutions Inc. | Si595 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG24M5760DGR | Skyworks Solutions Inc. | Si595 | 24.576 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG74M2500DGR | Skyworks Solutions Inc. | Si595 | 74.25 MHz | LVPECL | 3.3V | ±50ppm |
| 595BF27M0000DGR | Skyworks Solutions Inc. | Si595 | 27 MHz | LVDS | 3.3V | ±50ppm |
| 595MC125M000DGR | Skyworks Solutions Inc. | Si595 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF70M6560DGR | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF40M0000DGR | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±50ppm |
| 595FS100M000DGR | Skyworks Solutions Inc. | Si595 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 595AD10M0000DGR | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD50M0000DGR | Skyworks Solutions Inc. | Si595 | 50 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD64M0000DGR | Skyworks Solutions Inc. | Si595 | 64 MHz | LVPECL | 3.3V | ±20ppm |
| 595AH122M880DGR | Skyworks Solutions Inc. | Si595 | 122.88 MHz | LVPECL | 3.3V | ±20ppm |
| 595AH61M4400DGR | Skyworks Solutions Inc. | Si595 | 61.44 MHz | LVPECL | 3.3V | ±20ppm |
| 595BA25M0000DGR | Skyworks Solutions Inc. | Si595 | 25 MHz | LVDS | 3.3V | ±20ppm |
| 595BD125M000DGR | Skyworks Solutions Inc. | Si595 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 595BE70M6560DGR | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 595BE74M2500DGR | Skyworks Solutions Inc. | Si595 | 74.25 MHz | LVDS | 3.3V | ±20ppm |
| 595ME77M7600DGR | Skyworks Solutions Inc. | Si595 | 77.76 MHz | LVPECL | 3.3V | ±20ppm |
| 595ME93M3120DGR | Skyworks Solutions Inc. | Si595 | 93.312 MHz | LVPECL | 3.3V | ±20ppm |
| 595MH100M000DGR | Skyworks Solutions Inc. | Si595 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 595ND70M6560DGR | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 595AD40M0000DGR | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE40M0000DGR | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 595BE10M0000DGR | Skyworks Solutions Inc. | Si595 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 595FK25M0000DGR | Skyworks Solutions Inc. | Si595 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 595AC10M0000DG | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC16M3840DG | Skyworks Solutions Inc. | Si595 | 16.384 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC32M7680DG | Skyworks Solutions Inc. | Si595 | 32.768 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC77M7600DG | Skyworks Solutions Inc. | Si595 | 77.76 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC93M3120DG | Skyworks Solutions Inc. | Si595 | 93.312 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF32M0000DG | Skyworks Solutions Inc. | Si595 | 32 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF54M0000DG | Skyworks Solutions Inc. | Si595 | 54 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG100M000DG | Skyworks Solutions Inc. | Si595 | 100 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG10M0000DG | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG125M000DG | Skyworks Solutions Inc. | Si595 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG24M5760DG | Skyworks Solutions Inc. | Si595 | 24.576 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG74M2500DG | Skyworks Solutions Inc. | Si595 | 74.25 MHz | LVPECL | 3.3V | ±50ppm |
| 595BF27M0000DG | Skyworks Solutions Inc. | Si595 | 27 MHz | LVDS | 3.3V | ±50ppm |
| 595MC125M000DG | Skyworks Solutions Inc. | Si595 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF70M6560DG | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF40M0000DG | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±50ppm |
| 595FS100M000DG | Skyworks Solutions Inc. | Si595 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 595BC000178DGR | Skyworks Solutions Inc. | Si595 | 148.3516 MHz | LVDS | 3.3V | ±50ppm |
| 595FG148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 2.5V | ±50ppm |
| 595FS000244DGR | Skyworks Solutions Inc. | Si595 | 148.351648 MHz | LVDS | 2.5V | ±50ppm |
| 595AC196M608DGR | Skyworks Solutions Inc. | Si595 | 196.608 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF000244DGR | Skyworks Solutions Inc. | Si595 | 244 kHz | LVPECL | 3.3V | ±50ppm |
| 595AF000343DGR | Skyworks Solutions Inc. | Si595 | 343 kHz | LVPECL | 3.3V | ±50ppm |
| 595AF140M000DGR | Skyworks Solutions Inc. | Si595 | 140 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF208M000DGR | Skyworks Solutions Inc. | Si595 | 208 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG000172DGR | Skyworks Solutions Inc. | Si595 | 172 kHz | LVPECL | 3.3V | ±50ppm |
| 595AG000244DGR | Skyworks Solutions Inc. | Si595 | 244 kHz | LVPECL | 3.3V | ±50ppm |
| 595AG148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 595BG148M352DGR | Skyworks Solutions Inc. | Si595 | 148.352 MHz | LVDS | 3.3V | ±50ppm |
| 595BG148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 595EG160M000DGR | Skyworks Solutions Inc. | Si595 | 160 MHz | LVPECL | 2.5V | ±50ppm |
| 595MG139M264DGR | Skyworks Solutions Inc. | Si595 | 139.264 MHz | LVPECL | 3.3V | ±50ppm |
| 595MG155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595AD10M0000DG | Skyworks Solutions Inc. | Si595 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD50M0000DG | Skyworks Solutions Inc. | Si595 | 50 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD64M0000DG | Skyworks Solutions Inc. | Si595 | 64 MHz | LVPECL | 3.3V | ±20ppm |
| 595AH122M880DG | Skyworks Solutions Inc. | Si595 | 122.88 MHz | LVPECL | 3.3V | ±20ppm |
| 595AH61M4400DG | Skyworks Solutions Inc. | Si595 | 61.44 MHz | LVPECL | 3.3V | ±20ppm |
| 595BA25M0000DG | Skyworks Solutions Inc. | Si595 | 25 MHz | LVDS | 3.3V | ±20ppm |
| 595BD125M000DG | Skyworks Solutions Inc. | Si595 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 595BE70M6560DG | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 595BE74M2500DG | Skyworks Solutions Inc. | Si595 | 74.25 MHz | LVDS | 3.3V | ±20ppm |
| 595ME77M7600DG | Skyworks Solutions Inc. | Si595 | 77.76 MHz | LVPECL | 3.3V | ±20ppm |
| 595ME93M3120DG | Skyworks Solutions Inc. | Si595 | 93.312 MHz | LVPECL | 3.3V | ±20ppm |
| 595MH100M000DG | Skyworks Solutions Inc. | Si595 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 595ND70M6560DG | Skyworks Solutions Inc. | Si595 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 595BE10M0000DG | Skyworks Solutions Inc. | Si595 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 595AE40M0000DG | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD40M0000DG | Skyworks Solutions Inc. | Si595 | 40 MHz | LVPECL | 3.3V | ±20ppm |
| 595FK25M0000DG | Skyworks Solutions Inc. | Si595 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 595AC196M608DG | Skyworks Solutions Inc. | Si595 | 196.608 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF000244DG | Skyworks Solutions Inc. | Si595 | 244 kHz | LVPECL | 3.3V | ±50ppm |
| 595AF000343DG | Skyworks Solutions Inc. | Si595 | 343 kHz | LVPECL | 3.3V | ±50ppm |
| 595AF140M000DG | Skyworks Solutions Inc. | Si595 | 140 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF208M000DG | Skyworks Solutions Inc. | Si595 | 208 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG000172DG | Skyworks Solutions Inc. | Si595 | 172 kHz | LVPECL | 3.3V | ±50ppm |
| 595AG000244DG | Skyworks Solutions Inc. | Si595 | 244 kHz | LVPECL | 3.3V | ±50ppm |
| 595AG148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 595BG148M352DG | Skyworks Solutions Inc. | Si595 | 148.352 MHz | LVDS | 3.3V | ±50ppm |
| 595BG148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 595EG160M000DG | Skyworks Solutions Inc. | Si595 | 160 MHz | LVPECL | 2.5V | ±50ppm |
| 595MG139M264DG | Skyworks Solutions Inc. | Si595 | 139.264 MHz | LVPECL | 3.3V | ±50ppm |
| 595MG155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC000178DG | Skyworks Solutions Inc. | Si595 | 148.3516 MHz | LVDS | 3.3V | ±50ppm |
| 595FG148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 2.5V | ±50ppm |
| 595FS000244DG | Skyworks Solutions Inc. | Si595 | 148.351648 MHz | LVDS | 2.5V | ±50ppm |
| 595BA125M000DG | Skyworks Solutions Inc. | Si595 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 595BA125M000DGR | Skyworks Solutions Inc. | Si595 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 595BG491M520DGR | Skyworks Solutions Inc. | Si595 | 491.52 MHz | LVDS | 3.3V | ±50ppm |
| 595BG500M000DGR | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 3.3V | ±50ppm |
| 595NG250M000DGR | Skyworks Solutions Inc. | Si595 | 250 MHz | LVDS | 3.3V | ±50ppm |
| 595AA155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD153M600DGR | Skyworks Solutions Inc. | Si595 | 153.6 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD170M240DGR | Skyworks Solutions Inc. | Si595 | 170.24 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD205M000DGR | Skyworks Solutions Inc. | Si595 | 205 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD210M000DGR | Skyworks Solutions Inc. | Si595 | 210 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE156M250DGR | Skyworks Solutions Inc. | Si595 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE192M000DGR | Skyworks Solutions Inc. | Si595 | 192 MHz | LVPECL | 3.3V | ±20ppm |
| 595BA148M425DGR | Skyworks Solutions Inc. | Si595 | 148.425 MHz | LVDS | 3.3V | ±20ppm |
| 595BD209M345DGR | Skyworks Solutions Inc. | Si595 | 209.345 MHz | LVDS | 3.3V | ±20ppm |
| 595EB155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 2.5V | ±20ppm |
| 595FB212M000DGR | Skyworks Solutions Inc. | Si595 | 212 MHz | LVDS | 2.5V | ±20ppm |
| 595MD161M525DGR | Skyworks Solutions Inc. | Si595 | 161.525 MHz | LVPECL | 3.3V | ±20ppm |
| 595MD161M575DGR | Skyworks Solutions Inc. | Si595 | 161.575 MHz | LVPECL | 3.3V | ±20ppm |
| 595ME155M520DGR | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD147M900DGR | Skyworks Solutions Inc. | Si595 | 147.9 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE160M000DGR | Skyworks Solutions Inc. | Si595 | 160 MHz | LVPECL | 3.3V | ±20ppm |
| 595BB000178DGR | Skyworks Solutions Inc. | Si595 | 148.3516 MHz | LVDS | 3.3V | ±20ppm |
| 595BB148M500DGR | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 595AA155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD153M600DG | Skyworks Solutions Inc. | Si595 | 153.6 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD170M240DG | Skyworks Solutions Inc. | Si595 | 170.24 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD205M000DG | Skyworks Solutions Inc. | Si595 | 205 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD210M000DG | Skyworks Solutions Inc. | Si595 | 210 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE156M250DG | Skyworks Solutions Inc. | Si595 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE192M000DG | Skyworks Solutions Inc. | Si595 | 192 MHz | LVPECL | 3.3V | ±20ppm |
| 595BA148M425DG | Skyworks Solutions Inc. | Si595 | 148.425 MHz | LVDS | 3.3V | ±20ppm |
| 595BD209M345DG | Skyworks Solutions Inc. | Si595 | 209.345 MHz | LVDS | 3.3V | ±20ppm |
| 595EB155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 2.5V | ±20ppm |
| 595FB212M000DG | Skyworks Solutions Inc. | Si595 | 212 MHz | LVDS | 2.5V | ±20ppm |
| 595MD161M525DG | Skyworks Solutions Inc. | Si595 | 161.525 MHz | LVPECL | 3.3V | ±20ppm |
| 595MD161M575DG | Skyworks Solutions Inc. | Si595 | 161.575 MHz | LVPECL | 3.3V | ±20ppm |
| 595ME155M520DG | Skyworks Solutions Inc. | Si595 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD147M900DG | Skyworks Solutions Inc. | Si595 | 147.9 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE160M000DG | Skyworks Solutions Inc. | Si595 | 160 MHz | LVPECL | 3.3V | ±20ppm |
| 595BB000178DG | Skyworks Solutions Inc. | Si595 | 148.3516 MHz | LVDS | 3.3V | ±20ppm |
| 595BB148M500DG | Skyworks Solutions Inc. | Si595 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 595BG491M520DG | Skyworks Solutions Inc. | Si595 | 491.52 MHz | LVDS | 3.3V | ±50ppm |
| 595BG500M000DG | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 3.3V | ±50ppm |
| 595NG250M000DG | Skyworks Solutions Inc. | Si595 | 250 MHz | LVDS | 3.3V | ±50ppm |
| 595AB800M000DGR | Skyworks Solutions Inc. | Si595 | 800 MHz | LVPECL | 3.3V | ±20ppm |
| 595AB800M000DG | Skyworks Solutions Inc. | Si595 | 800 MHz | LVPECL | 3.3V | ±20ppm |
| 595EE297M000DGR | Skyworks Solutions Inc. | Si595 | 297 MHz | LVPECL | 2.5V | ±20ppm |
| 595MD400M000DGR | Skyworks Solutions Inc. | Si595 | 400 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD400M000DGR | Skyworks Solutions Inc. | Si595 | 400 MHz | LVPECL | 3.3V | ±20ppm |
| 595BQ300M000DGR | Skyworks Solutions Inc. | Si595 | 300 MHz | LVDS | 3.3V | ±20ppm |
| 595MG700M000DGR | Skyworks Solutions Inc. | Si595 | 700 MHz | LVPECL | 3.3V | ±50ppm |
| 595AD225M000DGR | Skyworks Solutions Inc. | Si595 | 225 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD250M000DGR | Skyworks Solutions Inc. | Si595 | 250 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD256M000DGR | Skyworks Solutions Inc. | Si595 | 256 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD280M000DGR | Skyworks Solutions Inc. | Si595 | 280 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD480M000DGR | Skyworks Solutions Inc. | Si595 | 480 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE384M000DGR | Skyworks Solutions Inc. | Si595 | 384 MHz | LVPECL | 3.3V | ±20ppm |
| 595BB270M000DGR | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 3.3V | ±20ppm |
| 595MD224M000DGR | Skyworks Solutions Inc. | Si595 | 224 MHz | LVPECL | 3.3V | ±20ppm |
| 595MD432M975DGR | Skyworks Solutions Inc. | Si595 | 432.975 MHz | LVPECL | 3.3V | ±20ppm |
| 595SA500M000DGR | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 2.5V | ±20ppm |
| 595SB500M000DGR | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 2.5V | ±20ppm |
| 595EE297M000DG | Skyworks Solutions Inc. | Si595 | 297 MHz | LVPECL | 2.5V | ±20ppm |
| 595MD400M000DG | Skyworks Solutions Inc. | Si595 | 400 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD400M000DG | Skyworks Solutions Inc. | Si595 | 400 MHz | LVPECL | 3.3V | ±20ppm |
| 595BQ300M000DG | Skyworks Solutions Inc. | Si595 | 300 MHz | LVDS | 3.3V | ±20ppm |
| 595MG700M000DG | Skyworks Solutions Inc. | Si595 | 700 MHz | LVPECL | 3.3V | ±50ppm |
| 595AD225M000DG | Skyworks Solutions Inc. | Si595 | 225 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD250M000DG | Skyworks Solutions Inc. | Si595 | 250 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD256M000DG | Skyworks Solutions Inc. | Si595 | 256 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD280M000DG | Skyworks Solutions Inc. | Si595 | 280 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD480M000DG | Skyworks Solutions Inc. | Si595 | 480 MHz | LVPECL | 3.3V | ±20ppm |
| 595AE384M000DG | Skyworks Solutions Inc. | Si595 | 384 MHz | LVPECL | 3.3V | ±20ppm |
| 595BB270M000DG | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 3.3V | ±20ppm |
| 595MD224M000DG | Skyworks Solutions Inc. | Si595 | 224 MHz | LVPECL | 3.3V | ±20ppm |
| 595MD432M975DG | Skyworks Solutions Inc. | Si595 | 432.975 MHz | LVPECL | 3.3V | ±20ppm |
| 595SA500M000DG | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 2.5V | ±20ppm |
| 595SB500M000DG | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 2.5V | ±20ppm |
| 595NG310M000DGR | Skyworks Solutions Inc. | Si595 | 310 MHz | LVDS | 3.3V | ±50ppm |
| 595AG404M000DGR | Skyworks Solutions Inc. | Si595 | 404 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC270M000DGR | Skyworks Solutions Inc. | Si595 | 270 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF248M832DGR | Skyworks Solutions Inc. | Si595 | 248.832 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF375M000DGR | Skyworks Solutions Inc. | Si595 | 375 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG491M520DGR | Skyworks Solutions Inc. | Si595 | 491.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC216M000DGR | Skyworks Solutions Inc. | Si595 | 216 MHz | LVDS | 3.3V | ±50ppm |
| 595BC270M000DGR | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 3.3V | ±50ppm |
| 595BC500M000DGR | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 3.3V | ±50ppm |
| 595BF300M000DGR | Skyworks Solutions Inc. | Si595 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 595FC270M000DGR | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 2.5V | ±50ppm |
| 595MC425M000DGR | Skyworks Solutions Inc. | Si595 | 425 MHz | LVPECL | 3.3V | ±50ppm |
| 595AC270M000DG | Skyworks Solutions Inc. | Si595 | 270 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF248M832DG | Skyworks Solutions Inc. | Si595 | 248.832 MHz | LVPECL | 3.3V | ±50ppm |
| 595AF375M000DG | Skyworks Solutions Inc. | Si595 | 375 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG491M520DG | Skyworks Solutions Inc. | Si595 | 491.52 MHz | LVPECL | 3.3V | ±50ppm |
| 595BC216M000DG | Skyworks Solutions Inc. | Si595 | 216 MHz | LVDS | 3.3V | ±50ppm |
| 595BC270M000DG | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 3.3V | ±50ppm |
| 595BC500M000DG | Skyworks Solutions Inc. | Si595 | 500 MHz | LVDS | 3.3V | ±50ppm |
| 595BF300M000DG | Skyworks Solutions Inc. | Si595 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 595FC270M000DG | Skyworks Solutions Inc. | Si595 | 270 MHz | LVDS | 2.5V | ±50ppm |
| 595MC425M000DG | Skyworks Solutions Inc. | Si595 | 425 MHz | LVPECL | 3.3V | ±50ppm |
| 595AG404M000DG | Skyworks Solutions Inc. | Si595 | 404 MHz | LVPECL | 3.3V | ±50ppm |
| 595NG310M000DG | Skyworks Solutions Inc. | Si595 | 310 MHz | LVDS | 3.3V | ±50ppm |
| 595AE000302DGR | Skyworks Solutions Inc. | Si595 | 302 kHz | LVPECL | 3.3V | ±20ppm |
| 595AE640M000DGR | Skyworks Solutions Inc. | Si595 | 640 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD004664DGR | Skyworks Solutions Inc. | Si595 | 805.664062 MHz | LVPECL | 3.3V | ±20ppm |
| 595AG622M080DGR | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595MG622M080DGR | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595BS622M080DGR | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVDS | 3.3V | ±50ppm |
| 595AS622M080DGR | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595AE000302DG | Skyworks Solutions Inc. | Si595 | 302 kHz | LVPECL | 3.3V | ±20ppm |
| 595AE640M000DG | Skyworks Solutions Inc. | Si595 | 640 MHz | LVPECL | 3.3V | ±20ppm |
| 595AD004664DG | Skyworks Solutions Inc. | Si595 | 805.664062 MHz | LVPECL | 3.3V | ±20ppm |
| 595AG622M080DG | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595MG622M080DG | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
| 595BS622M080DG | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVDS | 3.3V | ±50ppm |
| 595AS622M080DG | Skyworks Solutions Inc. | Si595 | 622.08 MHz | LVPECL | 3.3V | ±50ppm |
1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受 專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 何疑問.讓您的消費得到保障。
3.質量保證，誠信為上 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.
深 圳 市 泰 河 電 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
電話:0755-27872782
手機:13824306246
郵箱:taiheth@163.com
Q Q:794113422
地址:深圳市寶安區40區33號工業城6樓
網址：http://www.whhxsm.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
微信:taihekj QQ:794113422
