- 產品型號：69837233
- 晶振頻率：10MHz
- 晶振尺寸：7.0*5.0*1.5mm
- 產品應用： Skyworks差分晶振,Si570進口晶振,有源晶振,石英晶體振蕩器,570BCC000112DG晶振,通過DSPLL時鐘合成提供了優越的電源噪聲抑制,簡化了在通信系統中常見的噪聲環境中產生低抖動時鐘的任務,7050mm晶振,LVDS晶振,六腳貼片晶...
-

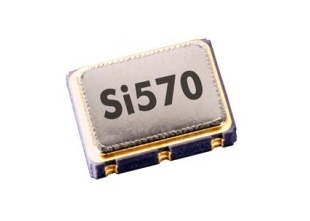

Skyworks差分晶振,570BCC000112DG,6G以太網晶振
Skyworks差分晶振,570BCC000112DG,6G以太網晶振,Skyworks差分晶振,Si570進口晶振,有源晶振,石英晶體振蕩器,570BCC000112DG晶振,通過DSPLL時鐘合成提供了優越的電源噪聲抑制,簡化了在通信系統中常見的噪聲環境中產生低抖動時鐘的任務,7050mm晶振,LVDS晶振,六腳貼片晶振,高可靠性晶振,低老化晶振,6G以太網晶振,SONET / SDH晶振,時鐘和數據恢復晶振.
Skyworks差分晶振,570BCC000112DG,6G以太網晶振特點：
•可與任意速率輸出頻率從10MHz到945MHz和選擇頻率到1.4 GHz
•I2C串行接口
•第三代DSPLL®具有優越的抖動性能
•頻率穩定性優于SAW-based振蕩器
•內部固定晶頻，可靠性高，老化低
•具備CMOS, LVPECL，LVDS和CML輸出
•3.3, 2.5和1.8 V電源選項
•工業標準的5 × 7mm封裝和引腳
•無鉛，符合RoHS標準
Skyworks差分晶振,570BCC000112DG,6G以太網晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 10MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±7 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 108mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOD | 0.9VPP Max |
LVDS
|
| VO | 1.275V Max | ||
| 輸入電壓 | VIH | 0.75×VDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降時間 | tr/tf | 350ps Max |
LVDS
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.62ps Max |
Differential Formats
|
.jpg)
Skyworks差分晶振,570BCC000112DG,6G以太網晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| 570BAB000544DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570FAA000759DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 2.5V | ±50ppm |
| 570BAB000118DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570BCC000112DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BBC000876DG | Skyworks Solutions Inc. | Si570 | 49.87013 MHz | LVDS | 3.3V | ±20ppm |
| 570ACA001527DGR | Skyworks Solutions Inc. | Si570 | 875 MHz | LVPECL | 3.3V | ±7ppm |
| 570BBC000121DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 570BAB000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001614DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001614DG | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB000299DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±50ppm |
| 570AAA000111DG | Skyworks Solutions Inc. | Si570 | 25 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC000118DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC000129DG | Skyworks Solutions Inc. | Si570 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 570BAC000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 570BBC000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 570FBC000121DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±20ppm |
| 570BCC000107DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570MAC000118DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 570FAB000433DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570FAB000544DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±50ppm |
| 570ABB000419DG | Skyworks Solutions Inc. | Si570 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 570BBB000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 570BCB000177DG | Skyworks Solutions Inc. | Si570 | 297 MHz | LVDS | 3.3V | ±7ppm |
| 570BBC000159DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 570BAB001641DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570ABA001058DGR | Skyworks Solutions Inc. | Si570 | 644.53 MHz | LVPECL | 3.3V | ±20ppm |
| 570ABA001328DGR | Skyworks Solutions Inc. | Si570 | 1.066 GHz | LVPECL | 3.3V | ±20ppm |
| 570BBA000504DGR | Skyworks Solutions Inc. | Si570 | 48 MHz | LVDS | 3.3V | ±20ppm |
| 570BBC000131DG | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 3.3V | ±20ppm |
| 570BBC000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 3.3V | ±20ppm |
| 570BCB001530DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570BCB001530DGR | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570FAB000125DG | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FAB000125DGR | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000125DG | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000125DGR | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FCB001691DG | Skyworks Solutions Inc. | Si570 | 698.8123 MHz | LVDS | 2.5V | ±7ppm |
| 570FCB001691DGR | Skyworks Solutions Inc. | Si570 | 698.8123 MHz | LVDS | 2.5V | ±7ppm |
| 570ABB000133DG | Skyworks Solutions Inc. | Si570 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 570ABB000133DGR | Skyworks Solutions Inc. | Si570 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 570ACA000462DG | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000462DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 3.3V | ±7ppm |
| 570BAB000125DG | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB000125DGR | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001595DG | Skyworks Solutions Inc. | Si570 | 333 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001595DGR | Skyworks Solutions Inc. | Si570 | 333 MHz | LVDS | 3.3V | ±50ppm |
| 570BBA000504DG | Skyworks Solutions Inc. | Si570 | 48 MHz | LVDS | 3.3V | ±20ppm |
| 570AAC000270DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001528DGR | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001762DGR | Skyworks Solutions Inc. | Si570 | 136.39008 MHz | LVPECL | 3.3V | ±50ppm |
| 570EAC000741DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
| 570FAC000465DGR | Skyworks Solutions Inc. | Si570 | 60 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000833DGR | Skyworks Solutions Inc. | Si570 | 153.6 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001059DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001531DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570BCA000136DG | Skyworks Solutions Inc. | Si570 | 160 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000301DG | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA002166DG | Skyworks Solutions Inc. | Si570 | 33.333333 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000313DG | Skyworks Solutions Inc. | Si570 | 300 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA001830DG | Skyworks Solutions Inc. | Si570 | 1.215 GHz | LVDS | 3.3V | ±7ppm |
| 570ACA002326DG | Skyworks Solutions Inc. | Si570 | 33.3333333 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002276DG | Skyworks Solutions Inc. | Si570 | 156.2 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000780DG | Skyworks Solutions Inc. | Si570 | 30 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000298DG | Skyworks Solutions Inc. | Si570 | 866 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000544DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000163DG | Skyworks Solutions Inc. | Si570 | 20 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA001040DG | Skyworks Solutions Inc. | Si570 | 188 MHz | LVDS | 2.5V | ±7ppm |
| 570BCA002400DG | Skyworks Solutions Inc. | Si570 | 49.87013 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA001123DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA002390DG | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA001476DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000520DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000915DG | Skyworks Solutions Inc. | Si570 | 375 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002414DG | Skyworks Solutions Inc. | Si570 | 174.703 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000157DG | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002412DG | Skyworks Solutions Inc. | Si570 | 1.05 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000420DG | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002188DG | Skyworks Solutions Inc. | Si570 | 20 MHz | LVPECL | 3.3V | ±7ppm |
| 570AAC000270DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001528DG | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001762DG | Skyworks Solutions Inc. | Si570 | 136.39008 MHz | LVPECL | 3.3V | ±50ppm |
| 570EAC000741DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
| 570FAC000465DG | Skyworks Solutions Inc. | Si570 | 60 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000833DG | Skyworks Solutions Inc. | Si570 | 153.6 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001059DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001531DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570NBA000163DG | Skyworks Solutions Inc. | Si570 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000223DG | Skyworks Solutions Inc. | Si570 | 28.192 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000233DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000352DG | Skyworks Solutions Inc. | Si570 | 288.399994 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000724DG | Skyworks Solutions Inc. | Si570 | 26 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000725DG | Skyworks Solutions Inc. | Si570 | 56 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000726DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000727DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000728DG | Skyworks Solutions Inc. | Si570 | 900 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001482DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001484DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001485DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001486DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570RBA000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 570SBA000121DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±20ppm |
| 570BBA000290DG | Skyworks Solutions Inc. | Si570 | 250 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA001058DG | Skyworks Solutions Inc. | Si570 | 644.53 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA002068DG | Skyworks Solutions Inc. | Si570 | 54 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA002069DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 570FBA000157DG | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 2.5V | ±20ppm |
| 570NBA000280DG | Skyworks Solutions Inc. | Si570 | 108 MHz | LVDS | 3.3V | ±20ppm |
| 570EBA000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 570BBA000111DG | Skyworks Solutions Inc. | Si570 | 25 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000372DG | Skyworks Solutions Inc. | Si570 | 800 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA001553DG | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 3.3V | ±20ppm |
| 570BBA002195DG | Skyworks Solutions Inc. | Si570 | 500 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000653DG | Skyworks Solutions Inc. | Si570 | 161.132812 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA002365DG | Skyworks Solutions Inc. | Si570 | 106.25 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000313DG | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±20ppm |
| 570FBA000122DG | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 2.5V | ±20ppm |
| 570FBA000668DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±20ppm |
| 570BBA002392DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000353DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA001873DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 570ACA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000111DGR | Skyworks Solutions Inc. | Si570 | 25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000115DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000141DGR | Skyworks Solutions Inc. | Si570 | 56.32 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000153DGR | Skyworks Solutions Inc. | Si570 | 12 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000163DGR | Skyworks Solutions Inc. | Si570 | 20 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000178DGR | Skyworks Solutions Inc. | Si570 | 16 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000233DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000368DGR | Skyworks Solutions Inc. | Si570 | 122.88 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000383DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000430DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000476DGR | Skyworks Solutions Inc. | Si570 | 322.265625 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000496DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000514DGR | Skyworks Solutions Inc. | Si570 | 19.982 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000650DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000732DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000770DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000810DGR | Skyworks Solutions Inc. | Si570 | 135.3 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000918DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000919DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000957DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000958DGR | Skyworks Solutions Inc. | Si570 | 74.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000973DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001026DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001055DGR | Skyworks Solutions Inc. | Si570 | 103.125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001122DGR | Skyworks Solutions Inc. | Si570 | 1.4 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001154DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001210DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001273DGR | Skyworks Solutions Inc. | Si570 | 1.03125 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001432DGR | Skyworks Solutions Inc. | Si570 | 72 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001479DGR | Skyworks Solutions Inc. | Si570 | 431.92 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001528DGR | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001557DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001617DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001644DGR | Skyworks Solutions Inc. | Si570 | 805.664063 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001732DGR | Skyworks Solutions Inc. | Si570 | 28 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001785DGR | Skyworks Solutions Inc. | Si570 | 19.982 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001786DGR | Skyworks Solutions Inc. | Si570 | 28 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001798DGR | Skyworks Solutions Inc. | Si570 | 307.2 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001864DGR | Skyworks Solutions Inc. | Si570 | 945 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001867DGR | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001874DGR | Skyworks Solutions Inc. | Si570 | 56.3202 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001880DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001922DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000111DGR | Skyworks Solutions Inc. | Si570 | 25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000115DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA000126DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000141DGR | Skyworks Solutions Inc. | Si570 | 56.32 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000159DGR | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000215DGR | Skyworks Solutions Inc. | Si570 | 27 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000233DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000274DGR | Skyworks Solutions Inc. | Si570 | 148 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000290DGR | Skyworks Solutions Inc. | Si570 | 250 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000305DGR | Skyworks Solutions Inc. | Si570 | 64 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000383DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000420DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000476DGR | Skyworks Solutions Inc. | Si570 | 322.265625 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000496DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000642DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000653DGR | Skyworks Solutions Inc. | Si570 | 161.132812 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000763DGR | Skyworks Solutions Inc. | Si570 | 1.09 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA000918DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001026DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001031DGR | Skyworks Solutions Inc. | Si570 | 437.5 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001226DGR | Skyworks Solutions Inc. | Si570 | 1.02 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA001336DGR | Skyworks Solutions Inc. | Si570 | 288.3 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001407DGR | Skyworks Solutions Inc. | Si570 | 932 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001454DGR | Skyworks Solutions Inc. | Si570 | 691.2 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001467DGR | Skyworks Solutions Inc. | Si570 | 266.666667 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001754DGR | Skyworks Solutions Inc. | Si570 | 39.0625 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001850DGR | Skyworks Solutions Inc. | Si570 | 625 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001915DGR | Skyworks Solutions Inc. | Si570 | 175 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001964DGR | Skyworks Solutions Inc. | Si570 | 14.875 MHz | LVDS | 3.3V | ±7ppm |
| 570ECA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 2.5V | ±7ppm |
| 570ECA000941DGR | Skyworks Solutions Inc. | Si570 | 56 MHz | LVPECL | 2.5V | ±7ppm |
| 570ECA001798DGR | Skyworks Solutions Inc. | Si570 | 307.2 MHz | LVPECL | 2.5V | ±7ppm |
| 570FCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000115DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000133DGR | Skyworks Solutions Inc. | Si570 | 500 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000169DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000179DGR | Skyworks Solutions Inc. | Si570 | 312.5 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000372DGR | Skyworks Solutions Inc. | Si570 | 800 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000420DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000476DGR | Skyworks Solutions Inc. | Si570 | 322.265625 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000643DGR | Skyworks Solutions Inc. | Si570 | 212.5 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001031DGR | Skyworks Solutions Inc. | Si570 | 437.5 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001228DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001702DGR | Skyworks Solutions Inc. | Si570 | 99.75 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001742DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001842DGR | Skyworks Solutions Inc. | Si570 | 200.08 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001879DGR | Skyworks Solutions Inc. | Si570 | 122.88 MHz | LVDS | 2.5V | ±7ppm |
| 570MCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000346DGR | Skyworks Solutions Inc. | Si570 | 81.36 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000763DGR | Skyworks Solutions Inc. | Si570 | 1.09 GHz | LVPECL | 3.3V | ±7ppm |
| 570MCA001230DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA001303DGR | Skyworks Solutions Inc. | Si570 | 212 MHz | LVPECL | 3.3V | ±7ppm |
| 570NCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000159DGR | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000759DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000803DGR | Skyworks Solutions Inc. | Si570 | 148.351648 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000830DGR | Skyworks Solutions Inc. | Si570 | 74.9633969 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000933DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA001047DGR | Skyworks Solutions Inc. | Si570 | 148.351 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA001780DGR | Skyworks Solutions Inc. | Si570 | 106.92 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA001881DGR | Skyworks Solutions Inc. | Si570 | 166 MHz | LVDS | 3.3V | ±7ppm |
| 570RCA000383DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVPECL | 2.5V | ±7ppm |
| 570RCA000825DGR | Skyworks Solutions Inc. | Si570 | 750 MHz | LVPECL | 2.5V | ±7ppm |
| 570RCA001068DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 2.5V | ±7ppm |
| 570SCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000212DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000273DGR | Skyworks Solutions Inc. | Si570 | 19.44 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000282DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000290DGR | Skyworks Solutions Inc. | Si570 | 250 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001930DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001977DGR | Skyworks Solutions Inc. | Si570 | 24 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002083DGR | Skyworks Solutions Inc. | Si570 | 161.4 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002096DGR | Skyworks Solutions Inc. | Si570 | 477.225 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000144DGR | Skyworks Solutions Inc. | Si570 | 80 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000161DGR | Skyworks Solutions Inc. | Si570 | 491.52 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000202DGR | Skyworks Solutions Inc. | Si570 | 14.4 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000273DGR | Skyworks Solutions Inc. | Si570 | 19.44 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000313DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000597DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000627DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001344DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001432DGR | Skyworks Solutions Inc. | Si570 | 72 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001978DGR | Skyworks Solutions Inc. | Si570 | 204.8 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002013DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002054DGR | Skyworks Solutions Inc. | Si570 | 174.703 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002055DGR | Skyworks Solutions Inc. | Si570 | 174.7031 MHz | LVDS | 3.3V | ±7ppm |
| 570ECA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 2.5V | ±7ppm |
| 570FCA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 2.5V | ±7ppm |
| 570FCA000136DGR | Skyworks Solutions Inc. | Si570 | 160 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000400DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001346DGR | Skyworks Solutions Inc. | Si570 | 200.08 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001624DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 570MCA001978DGR | Skyworks Solutions Inc. | Si570 | 204.8 MHz | LVPECL | 3.3V | ±7ppm |
| 570NCA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA002126DGR | Skyworks Solutions Inc. | Si570 | 152.987639 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA002145DGR | Skyworks Solutions Inc. | Si570 | 122.88 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000298DGR | Skyworks Solutions Inc. | Si570 | 866 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002325DGR | Skyworks Solutions Inc. | Si570 | 10.1313 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000133DGR | Skyworks Solutions Inc. | Si570 | 500 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000372DGR | Skyworks Solutions Inc. | Si570 | 800 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002281DGR | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA002265DGR | Skyworks Solutions Inc. | Si570 | 133.333 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002235DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000896DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000907DGR | Skyworks Solutions Inc. | Si570 | 106.25 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000282DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002229DGR | Skyworks Solutions Inc. | Si570 | 143.75 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000163DGR | Skyworks Solutions Inc. | Si570 | 20 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA002351DGR | Skyworks Solutions Inc. | Si570 | 99.75 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA000780DGR | Skyworks Solutions Inc. | Si570 | 30 MHz | LVPECL | 3.3V | ±7ppm |
| 570FCA002334DGR | Skyworks Solutions Inc. | Si570 | 99.75 MHz | LVDS | 2.5V | ±7ppm |
| 570BCA000299DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000157DGR | Skyworks Solutions Inc. | Si570 | 50 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000804DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000458DGR | Skyworks Solutions Inc. | Si570 | 26 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000668DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ECA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 2.5V | ±7ppm |
| 570BCA000991DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000685DGR | Skyworks Solutions Inc. | Si570 | 640 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002276DGR | Skyworks Solutions Inc. | Si570 | 156.2 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002287DGR | Skyworks Solutions Inc. | Si570 | 195.3125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002280DGR | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002326DGR | Skyworks Solutions Inc. | Si570 | 33.3333333 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000586DGR | Skyworks Solutions Inc. | Si570 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000676DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA001844DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVPECL | 3.3V | ±7ppm |
| 570FCA002199DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 2.5V | ±7ppm |
| 570NCA000157DGR | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000301DGR | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVDS | 3.3V | ±7ppm |
| 570ACA000400DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570FCA002265DGR | Skyworks Solutions Inc. | Si570 | 133.333 MHz | LVDS | 2.5V | ±7ppm |
| 570BCA002166DGR | Skyworks Solutions Inc. | Si570 | 33.333333 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002322DGR | Skyworks Solutions Inc. | Si570 | 13.1313 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA001830DGR | Skyworks Solutions Inc. | Si570 | 1.215 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA000136DGR | Skyworks Solutions Inc. | Si570 | 160 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA002183DGR | Skyworks Solutions Inc. | Si570 | 187.3125 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA002327DGR | Skyworks Solutions Inc. | Si570 | 13.040521 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA001617DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000313DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVPECL | 3.3V | ±7ppm |
1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受 專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 何疑問.讓您的消費得到保障。
3.質量保證，誠信為上 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.
深 圳 市 泰 河 電 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
電話:0755-27872782
手機:13824306246
郵箱:taiheth@163.com
Q Q:794113422
地址:深圳市寶安區40區33號工業城6樓
網址：http://www.whhxsm.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
微信:taihekj QQ:794113422
