首頁歐美晶振LFXTAL020423REEL|IQD Crystal

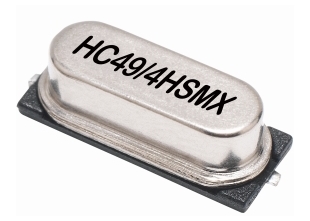

LFXTAL020423REEL|IQD Crystal

產品型號：97167235
晶振頻率：8MHz
晶振尺寸：
產品應用： 歐美進口晶振,IQD晶振,HC49/4HSMX無源晶振,LFXTAL020423REEL晶振,SMD晶體,HC-49S貼片晶振,石英晶體諧振器,頻率8MHz,負載18pF,頻率容差30ppm,工作溫度-20~70°C,尺寸11.4×4.9mm,高可靠性晶振,低電阻晶振,低老化晶振,家...

LFXTAL020423REEL|IQD Crystal,歐美進口晶振,IQD晶振,HC49/4HSMX無源晶振,LFXTAL020423REEL晶振,SMD晶體,HC-49S貼片晶振,石英晶體諧振器,頻率8MHz,負載18pF,頻率容差30ppm,工作溫度-20~70°C,尺寸11.4×4.9mm,高可靠性晶振,低電阻晶振,低老化晶振,家用電視機頂盒晶振,智能手表晶振,電子體重秤晶振,家用電器晶振.

LFXTAL020423REEL|IQD Crystal特點：
-工業標準低成本SMD版本的HC49/4H晶體
-電阻焊接，在惰性氣體中密封，引線上的玻璃與金屬密封

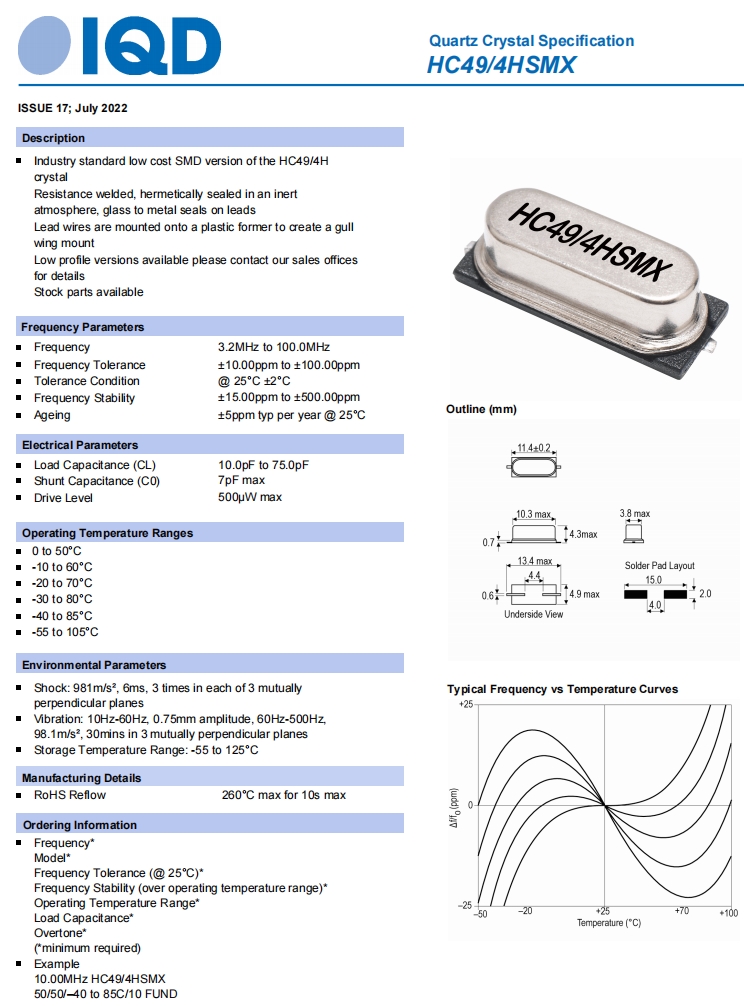

LFXTAL020423REEL|IQD Crystal規格表

Model		Product
		HC49/4HSMX
frequency		8MHz
Frequency Tolerance		±30.00ppm
Tolerance Condition		@ 25°C±2°C
Frequency Stability		±50.00ppm
operating temperature range		-20 to +70°C
Ageing		±5ppm typical per year@25°C
Load Capacitance		18pF
Shunt Capacitance		7pF max
Drive Level		500µW max
ESR		40Ω max
Storage Temperature Range		-55 to 125°C

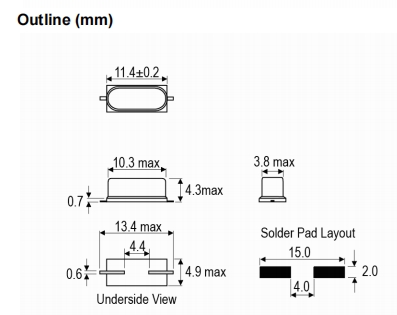

LFXTAL020423REEL|IQD Crystal尺寸圖

Mfr Part	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL003000	85SMX	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL069395RL3K	CFPX-218	16.384 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL009678	CFPX-217	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL050789REEL	IQXC-25	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL055299REEL	CFPX-180	25 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL053099REEL	CFPX-180	27.12 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL055663REEL	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL026392REEL	12SMX-B	16 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL011301REEL	HC49/4HSMX	8 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL029370REEL	HC49/4HSMX	16 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL016788REEL	HC49/4HSMX	6 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL002995BULK	WATCH	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL002997BULK	WATCH	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL002996BULK	WATCH	32.768 kHz	±15ppm	12.5pF	-40°C ~ 85°C
LFXTAL025159REEL	CFPX-56	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL003181REEL	HC49/4HSMX	20 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL003166REEL	HC49/4HSMX	10 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL029914REEL	HC49/4HSMX	8 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL003151REEL	HC49/4HSMX	8 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL003237REEL	HC49/4HSMX	16 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL014219BULK	WATCH	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
LFXTAL069494REEL	IQXC-42	25 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL069383REEL	CFPX-218	24 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL035264REEL	CFPX-180	16 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL069944REEL	CFPX-180	12 MHz	±20ppm	15pF	-40°C ~ 85°C
LFXTAL035268REEL	CFPX-180	25 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL056140REEL	IQXC-180 AUTO	24 MHz	±50ppm	8pF	-40°C ~ 125°C
LFXTAL069526REEL	IQXC-26	32 MHz	±15ppm	8pF	-20°C ~ 70°C
LFXTAL084885	IQXC-217	32.768 kHz	±20ppm	6pF	-
LFXTAL036075BULK	HC49/4H	27.12 MHz	±30ppm	10pF	-10°C ~ 60°C
LFXTAL027945BULK	HC49/4H	16 MHz	±30ppm	22pF	-10°C ~ 60°C
LFXTAL071268REEL	CFPX-218 AUTO	16 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL061627REEL	CFPX-104	8 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL055901REEL	CFPX-104	8 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL059158REEL	CFPX-104	8 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL062558REEL	IQXC-25	32.768 kHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL026384REEL	12SMX-B	12 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL026394REEL	12SMX-B	20 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL056516REEL	12SMX-B	8 MHz	±30ppm	12pF	-20°C ~ 70°C
LFXTAL026380REEL	12SMX-B	8 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL055663BULK	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL003033BULK	HC49	1.8432 MHz	±20ppm	30pF	-10°C ~ 60°C
LFXTAL020423REEL	HC49/4HSMX	8 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL024940REEL	HC49/4HSMX	4 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL026900REEL	HC49/4HSMX	6 MHz	±20ppm	16pF	-10°C ~ 60°C
LFXTAL030798REEL	HC49/4HSMX	3.6864 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL082071RL3K	CFPX-180	16 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL082069RL3K	CFPX-180	12 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL058637RL3K	CFPX-180	25 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL059627REEL	IQXC-42	38.4 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL082135CUTT	IQXC-42	48 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL063334REEL	CFPX-218	25 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL055474REEL	CFPX-180	25 MHz	±50ppm	16pF	-40°C ~ 85°C
LFXTAL059648REEL	CFPX-180	40 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL072604REEL	CFPX-180	25 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL069882REEL	CFPX-180	12 MHz	±30ppm	10pF	-40°C ~ 125°C
LFXTAL070065REEL	CFPX-180	24 MHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL055293REEL	CFPX-180	14.7456 MHz	±50ppm	18pF	-40°C ~ 85°C
LFXTAL009650REEL	CFPX-180	16 MHz	±10ppm	16pF	-40°C ~ 85°C
